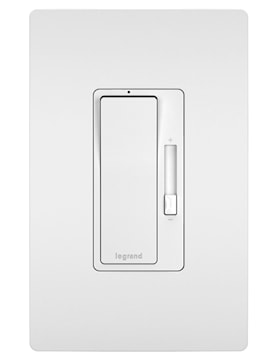

LEGRAND RHCL453PW The Radiant® Dimmer Switch 120 VAC, 450 W, 700 W Incandescent White/Enamel Painted, Gloss
pasrhcl453pw
LEGRAND RHCL453PW The Radiant® Dimmer Switch 120 VAC, 450 W, 700 W Incandescent White/Enamel Painted, Gloss
Price
$47.38
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEGRAND
Manufacturer #:RHCL453PW
Description
Convenient operation combines ON/OFF paddle switch with separate slider for dimming control. White LED glows when dimmer is OFF for easy location in the dark. Constant memory returns lights to previous level after a power failure. Single pole and 3-way operation. Adjustment dial allows users to adjust the bottom of the dimming range for a wide range of CFL and LED bulbs. No derating required in multi-gang applications. Rating: 450W LED; CFL; 700W Incandescent; 120VAC, 60Hz.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | The Radiant® |
| Item Name | Dimmer Switch | Type | 3 Way, Slide Handle, Paddle, Multi-Location, Phase Cut-Off |
| Voltage Rating | 120 V | Frequency Rating | 0 - 60 Hz |
| Power Rating | 450 W, 700 W Incandescent | Number of Poles | 1 |
| Material | Thermoplastic | Color/Finish | White/Enamel Painted, Gloss |
| Indicator Type | Universal and LED Retrofit | Connection Type | Screw Terminal |
| Operating Temperature | 0 - 40 °C | Environmental Conditions | < 95% RH Non-Condensing |
| Mounting | Box, Flush, Screw | Standards | cULus, UL Listed, CSA Certified |
| Application | For LED Retrofit, Incandescent, CFL Lighting Control, Residential Applications | UPC | 785007053371 |
