levt5325e

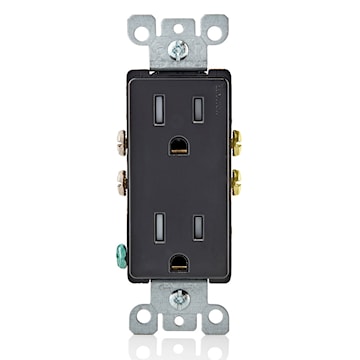

LEVITON T5325-E Decora® Tamper-Resistant, 2-Outlet, 1-Unit Straight Blade Duplex Receptacle with Child Protection 15 A, 5-15R Black
levt5325e
LEVITON T5325-E Decora® Tamper-Resistant, 2-Outlet, 1-Unit Straight Blade Duplex Receptacle with Child Protection 15 A, 5-15R Black
Price
$2.03
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:T5325-E
Description
Levitons tamper-resistant Decora duplex receptacle are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton's complete line of Decora devices.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle with Child Protection | Type | Tamper-Resistant, 2-Outlet, 1-Unit |
| Grade | Commercial | Size | 4.2 H x 1.33 W x 0.76 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Wire Type | Grounding | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Configuration | 5-15R |
| Connection Type | Quickwire Push-in and Side Wire | NEMA Rating | 5-15R |
| Conductor Size | 14 AWG | Material | Thermoplastic |
| Color | Black | Terminal Connection | Screw |
| Grounding | Grounding | Dimensions | 33.7 mm W x 19.2 mm D x 106.7 mm H |
| Mounting Type | Claw and Screw, Wallplate, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | NEMA WD-6, ANSI C73, NOM 057 Certified, CSA File Number LR-406, CSA C22.22 No. 111, UL 20, UL Listed 498, UL Listed 943, UL File Number E-13399 |
| Application | Commercial | UPC | 078477381755 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 | 200 - rarr_unit_3 | 5600 - rarr_unit_4 |
