levt5825w

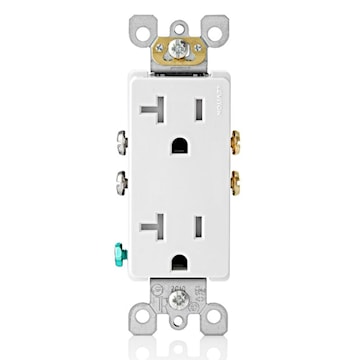

LEVITON T5825-W Decora® Outlet, Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R White
levt5825w
LEVITON T5825-W Decora® Outlet, Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R White
Price
$5.94
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:T5825-W
Description
Ultrasonically welded, 20A Tamper-Resistant, Decora duplex receptacle. Residential grade, NEMA 5-20R, side wired only, White.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet, Tamper-Resistant |
| Grade | Commercial | Size | 4.2 H x 1.351 W x 1.184 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Quickwire Push-In and Side Wired | NEMA Rating | 5-20R |
| Conductor Size | 14 AWG | Material | Thermoplastic |
| Color | White | Frequency Rating | 50/60 Hz |
| Phase | 1 | Terminal Connection | Screw |
| Dimensions | 38.7 mm W x 29 mm D x 103.2 mm H | Mounting Type | Wallbox, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL Listed, NOM, CSA Certified, CSA File Number 152105 | Application | Commercial |
| UPC | 078477450352 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 | 50 - rarr_unit_3 | 3600 - rarr_unit_4 |
