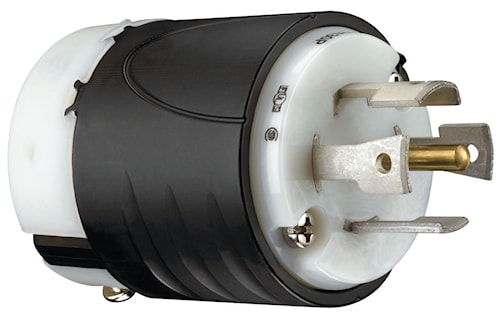

LEGRAND L2130P Pass & Seymour Turnlock Plug 30 A, 120/208 V, Straight, Industrial Specification Grade

Inventory
Unavailable for order
Manufacturer:LEGRAND
Manufacturer #:L2130P

Description

Plug with raised ribs provide non-slip gripping profile for turning to lock and unlock. Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire. Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity. Double dovetail design provides superior protection against cord pull-out forces. Impact- and corrosion-resistant durable nylon 6/6 shell material. Rounded back contour reduces snags and hang-ups on the job site. Scallop shell design provides non-slip gripping surface for insertion and withdrawal. Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Turnlock Plug Type Straight, Industrial Specification Grade
Number of Wires 5 Number of Poles 3
Voltage Rating 120/208 V Amperage Rating 30 A
Conductor Size 0 - 18 AWG NEMA Configuration L21-30P
Color/Finish Black/White Phase 3
Terminal Connection Screw Terminal NEMA Rating L21-30P
Material Thermoplastic Degree of Protection IP20
Dimensions 3.8 in Standards UL 498
Application Industrial UPC 785007213041
