lev9462p

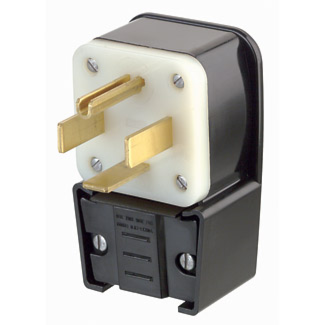

LEVITON 9462-P Straight Blade Power Plug 60 A, 125/250 V, Angled
lev9462p
LEVITON 9462-P Straight Blade Power Plug 60 A, 125/250 V, Angled
Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:9462-P
Description
Industrial grade straight blade plug made of super tough nylon. Solid brass blades/contacts and steel, zinc plated assembly screws. Leviton's heavy duty industrial power plugs offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty.
Specifications
| Brand Name | Leviton | Sub Brand | Straight Blade Plugs and Conn |
| Item Name | Straight Blade Power Plug | Type | Angled |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 125/250 V | Amperage Rating | 60 A |
| Conductor Size | 10 - 4 AWG | NEMA Configuration | 14-60P |
| Color/Finish | Black | Terminal Connection | Screw Terminal |
| Temperature Rating | -40 °C to 60 °C | Maximum Load Capacity | 3.5 hp |
| NEMA Rating | 14-60P | Material | Super Tough Nylon (Body) |
| Grounding | Grounding | Mounting Type | Cable |
| Dimensions | 2.76 in W x 1.89 in D x 4.37 in H | Environmental Conditions | Operating Temperature Range (-40 to 60) °C |
| Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL 498 (File E13399) | Application | Industrial |
| UPC | 078477809976 |
Packages
| 1 - rarr_unit_1 | ea - ea | 10 - rarr_unit_2 | 900 - rarr_unit_3 |
