etlfl621
ETLIN-DANIELS FL621 T5 Socket
etlfl621
ETLIN-DANIELS FL621 T5 Socket
Price
$1.09
/ EA
Inventory
Available for delivery
Unavailable for pick up
Ajax
Manufacturer:ETLIN-DANIELS
Manufacturer #:FL621
Description

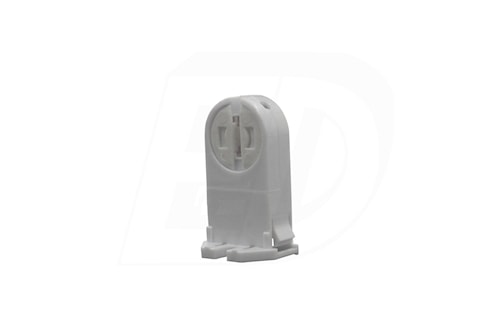

FL621 - T5 Lamps Linear Fluorescent Light Socket. Quick Connect 18 AWG Solid Wire. Snap-in, Screw Mount. Tall Type. G5 Base. 120 W 600 V Max, cULus cCSAus. White polycarbonate body, rated 110°C. Locking rotor design for maximum lamp retention. Snap-in mount or screw mount to panel. Quick connect push-in wire terminals for 18 AWG solid wire, stripped 5/16 inch Twin wire ways for easy harness wiring. Wires from bottom of lamp holder. Snap-in mounts into a 0.023 to 0.04 inch (0.6 mm to 1 mm) panel thickness.
Specifications
| Brand Name | Etlin-Daniels | Item Name | Lamp Holder |
| Wattage | 120 W | Voltage Rating | 600 V |
| Lamp Type | T5 Fluorescent | Connection Type | Quickwire Push-In |
| Terminal Type | 18 AWG Solid Wire | Mounting Type | Screw/Snap-In |
| Material | Polycarbonate | Color | White |
| For Use With | All G5 Base F Lamps, HO Lamps | Standards | cULus Listed, cCSAus Certified |
Packages
| 1 - rarr_unit_1 |
