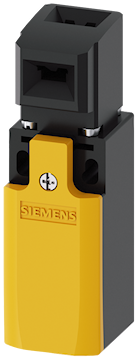

SIEMENS 3SE52120QV40 Sirius Safety Position Switch 1 NO, 2 NC Screw Fixing Mount
sie3se52120qv40
SIEMENS 3SE52120QV40 Sirius Safety Position Switch 1 NO, 2 NC Screw Fixing Mount
Price
$177.00
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:SIEMENS
Manufacturer #:3SE52120QV40
Description
Safety position switch. Modular device design with easy plug-in connection system. Positive opening of NC contacts. Application area up to SIL 3 in accordance with IEC 62061. High degree of protection up to IP66/IP67.
Specifications
| Brand Name | Siemens | Sub Brand | Sirius |
| Item Name | Safety Position Switch | Voltage Rating | 400 V |
| Contact Configuration | 1 NO, 2 NC | Dimensions | 31 mm L x 32.7 mm D x 104 mm H |
| Amperage Rating | 10 A | Conductor Size | (1) 20 - 16 AWG, (2) 20 - 18 AWG Solid and Stranded |
| Operating Cycles | 1000000 Cycles Mechanical, 100000 Cycles Electrical | Material | Metal |
| Color/Finish | Cathodic Immersion Coated | Mounting Type | Screw Fixing |
| Degree of Protection | IP66, IP67 | Connection Type | Screw-Type Terminal |
| Temperature Rating | -25 to 85 °C | Standards | CCC, CE, CSA Certified, UL Listed, EAC |
| UPC | 662643850949 |
